Stryker

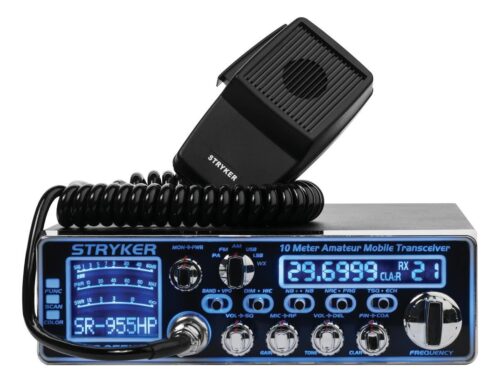

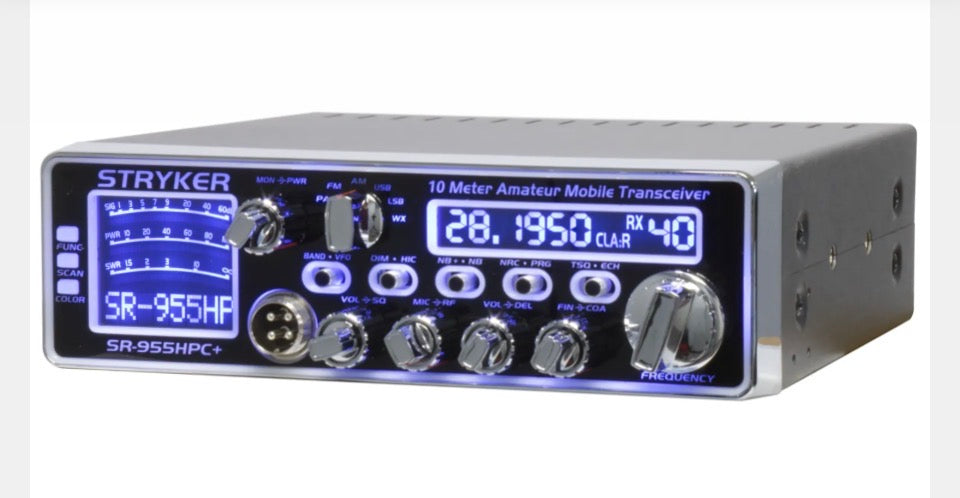

Stryker SR-955HPC+

Stryker SR-955HPC+

$445.00 USD
$445.00 USD
Sale Sold out
Converted
Upgraded
Screen Name change

The flagship radio for Stryker.  These radios offer unbelievable performance straight out of the box.  For those that require even more from their radio, we offer additional services to help tailor this radio to meet the needs of your intended use.  Power wire upgrades are available.  We also offer front screen name changes to match your call sign.





SR-955HPC+

General Specifications:

  •     Frequency Range: 28.000-29.700 MHz & 24.890 – 24.990
  •     (PC Programmable)
  •     Frequency Bands 1/2/3/4/5/6/7/8/9/10 & VFO
  •     Channel 40 channels (programmable) in each band
  •     Input voltage 13.8V (14.2 recommended)
  •     Antenna connector UHF SO239
  •     Frequency Control Phase-Locked-Loop Synthesizer
  •     Frequency Step 100Hz/1KHz/10KHz/100KHz/1MHz
  •     Frequency Tolerance of 0.005%
  •     Frequency Stability 0.001%
  •     Temperature Range -20c  + 50c

Transmitter Specifications:

  •     Power Output AM: 15W 100+ W PEP / FM 45W / SSB: 100+W(PEP)
  •     Current Drain 12A (with modulation)
  •     Unwanted Sideband 50dB
  •     Frequency Response:
    •     AM/FM: 300 to 4000Hz
    •     SSB 450 to 2500Hz
  •     Output Impedance 50 ohms, unbalanced
  •     Modulation AM/FM/SSB
    •     Inter-modulation Distortion SSB
      •     3rd order, more than -25dB
      •     5th order, more than -35dB
    •     SSB Carrier Suppression 55dB

Receiver Specifications:

  • AM/FM: 10.695 MHz; 455 kHz
  •  SSB: 10.695 MHz
  •  RF Gain Control: 45 dB for optimum signal reception
  •  Automatic Gain Control: less than 10 dB change from 10 to 100,000 MV
  •  Squelch Adjustable: threshold less than 1.0 µV
  •  Automatic Squelch Control(only AM/FM): 1.0 µV
  •  Audio Output Power: 3 watts into 8 ohms
  •  Frequency response: AM/FM: 300 to 3000 Hz; SSB 450 to 2500 Hz
  •  Built-in Speaker: 8 ohms, round.
  •   External Speaker Jack Sensitivity:
    •  SSB: 0.25 µV for 10 dB
    •  AM: 1.0 µV for 10 dB
    •  FM: 1.0 µV for 20 dB
  •  Adjacent-Channel Selectivity:
    •  AM/FM: 70 dB
    •  SSB: 70 dB
  • Image Rejection: More than 65 dB
