Retevis

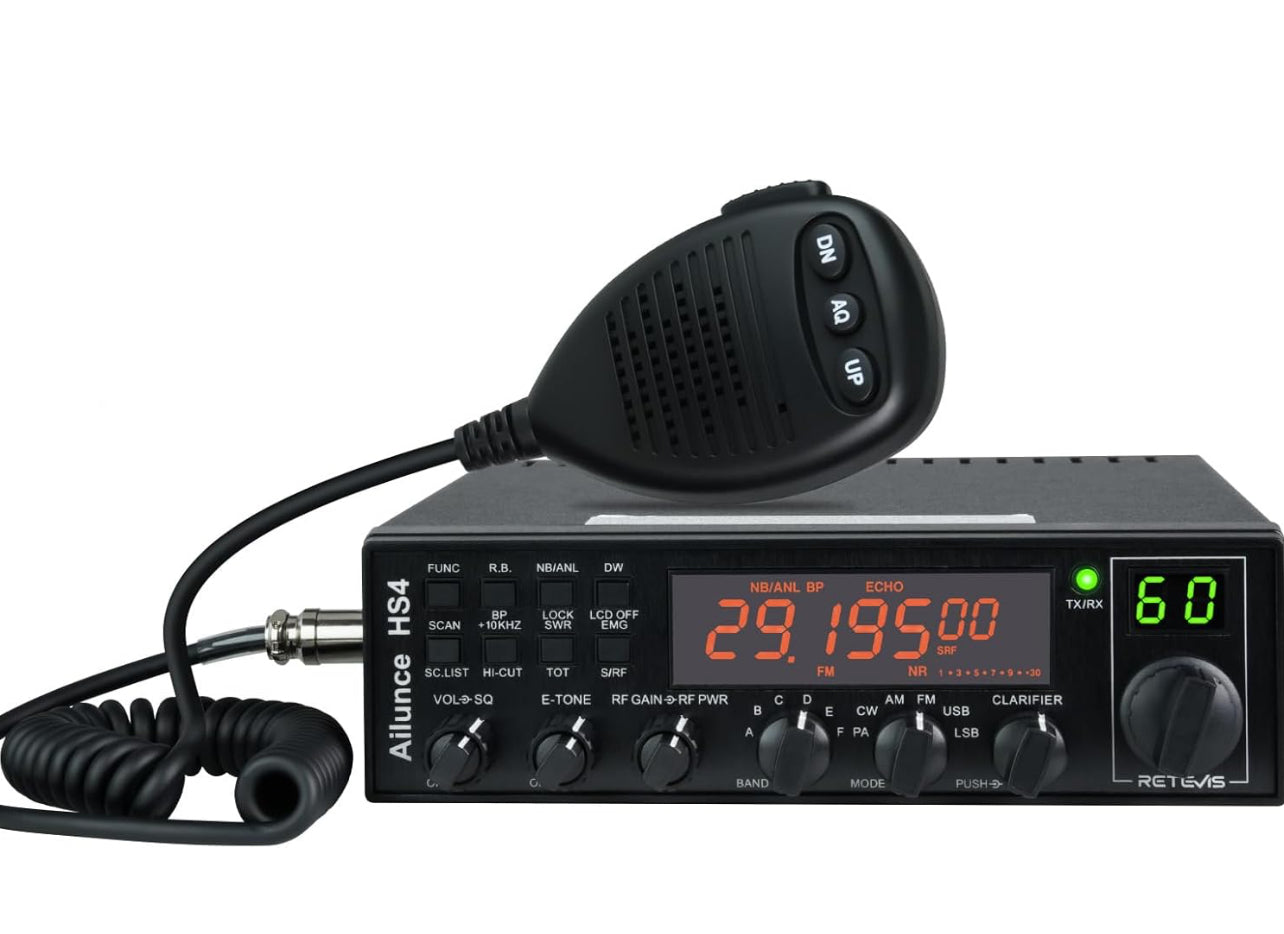

Retevis Ailunce HS4 10 Meter SSB Ham Radio AM/FM/PA/USB/LSB/CW Mobile Transceiver
Retevis Ailunce HS4 10 Meter SSB Ham Radio AM/FM/PA/USB/LSB/CW Mobile Transceiver
Regular price
$189.00 USD
Regular price
Sale price
$189.00 USD
Quantity
Couldn't load pickup availability
SPECIFICATIONS
General | |
Frequency Range | 28.000MHz-29.700MHz |
Frequency Band |
A/B/C/D/E/F |
Channel | 60 channels(programmable) |
Frequency Control | Phase-Locked-Loop Synthesizer |
Frequency Step | 10Hz 100Hz 1KHz 10KHz |
Frequency Tolerance | 0.005% |
Frequency Stability | 0.001% |
Temperature Range | -30℃to +50℃ |
Microphone | Plug-in dynamic :with push-to-talk/UP/DN/ASQ switch and coiled cord |
Input Voltage |
DC 13.8V normal,15.9Vmax;11.7V min Transmit: AM full mod 6A Receiver: Squelched 0.8A SSB 30W PEP output 9A |
Size | 28*25*6CM |
Weight | 1.5KG |
Antenna Connector | UHF,SO239 |
TRANSMITTER | |
Power Output |
AM/CW:1-12W(adjustable) FM:1-40W(adjustable) USB/LSB:1-35W(adjustable) |
Modulation |
AM FM |
Inter-modulation Distortion | SSB:3rd order, more than -25dB;5th order, more than -35dB |
SSB Carrier Suppression | 55dB |
Unwanted Sideband | 50dB |
Frequency Response | AM and FM:450 to 2500Hz |
Output impedance | 50ohms,unbalanced |
Sensitivity |
SSB:0.25μV for 10dB(S+N)/N at greater than 1/2-watt of audio output. AM:1.0μV for 10 dB(S+N)/N at greater than 1/2watt of audio output. FM:1.0μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output. |
Selectivity |
AM/FM:6dB@3KHz,50dB @9KHz SSB:6dB@2.1KHz,60dB @3.3KHz |
mage Rejection | More than 65dB |
IF Frequency |
AM/FM:10.695 MHz 1st IF,455 kHz 2nd IF SSB:10.695 MHz |
Adjacent-Channel | 60dB AM/FM &70 dB SSB |
RECEIVER | |
RF Gain Control | 45 dB adjustable for optimum signal reception |
Automatic Gain Control (AGC) | Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt |
Squelch |
Adjustable; threshold less than 0.5μV. Automatic Squelch Control(only AM/FM)0.5μV |
ANL | Switchable |
Noise Blanker | RF type, effective on AM/FM and SSB |
Audio Output Power | 3 watts into 8 ohms |
Frequency Response | 300 to 2800 Hz |
Built-in Speaker | 8 ohms, round. |
External Speaker (Not Supplied) | 8 ohms; disables internal speaker when connected. |
