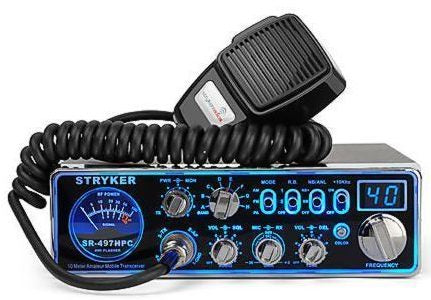

Stryker SR-497HPC

Stryker SR-497HPC

These radios have unbelievable audio!  One of the best on the market in overall performance!

The perfect radio for drivers that cannot use an amplifier due to company regulations.

• 12 Color Black Light Front Panel
• Up-Armored™ Receiver
• “Big Radio” Modulation, Loud Proud
• High Power 100+ watts PEP Power Output
• Variable Talk Back Control
• Two Different Roger Beeps
• Multiple Step Dimmer

•     Frequency Range: 28.000-29.700 MHz & 24.890 – 24.990
•     (PC Programmable)
•     Frequency Bands A. B, C, D, E, F, G, H, I, J, K, L & VFO
•     Channel 40 channels (programmable) in each band
•     Input voltage 13.8V (14.2 recommended)
•     Antenna connector UHF SO239
•     Frequency Control Phase-Locked-Loop Synthesizer
•     Frequency Step 100Hz/1KHz/10KHz/100KHz/1MHz
•     Frequency Tolerance of 0.005%
•     Frequency Stability 0.001%
•     Temperature Range -20c  + 50c

•     Power Output AM: 15W 60+ W PEP / FM 45W
•     Current Drain 12A (with modulation)
•     Unwanted Sideband 50dB
•     Frequency Response:
•     AM/FM: 300 to 4000Hz
•     Output Impedance 50 ohms, unbalanced
•     Modulation AM ***FM ***
•     Inter-modulation Distortion
•     3rd order, more than -25dB
•     5th order, more than -35dB

• IF Frequency AM/FM:10.695 MHz 1st IF, 455 kHz
•  RF Gain Control 45 dB for optimum signal reception
•  Automatic Gain Control:
•  Less than 10 dB change from 10 to 100,000 mv
•  Squelch Adjustable: threshold less than 1.0µV
•  Automatic Squelch Control(only AM/FM)1.0µV
•  Audio Output Power 3 watts into 8 ohms
•  Frequency response: AM/FM: 300 to 3000 Hz SSB 450 to 2500 Hz
•  Built-in Speaker 8 ohms, round.
•  External Speaker Jack Sensitivity SSB: 0.25µV for 10dB AM:1.0 µV for 10dB FM: 1.0µV for 20dB
• Adjacent-Channel Selectivity: AM/FM: 70dB ***
