Top Gun Quad-5

Top Gun Technologies (QUAD-5) - All Mode, AM/FM/USB/LSB/CW/PA, Black

Description:

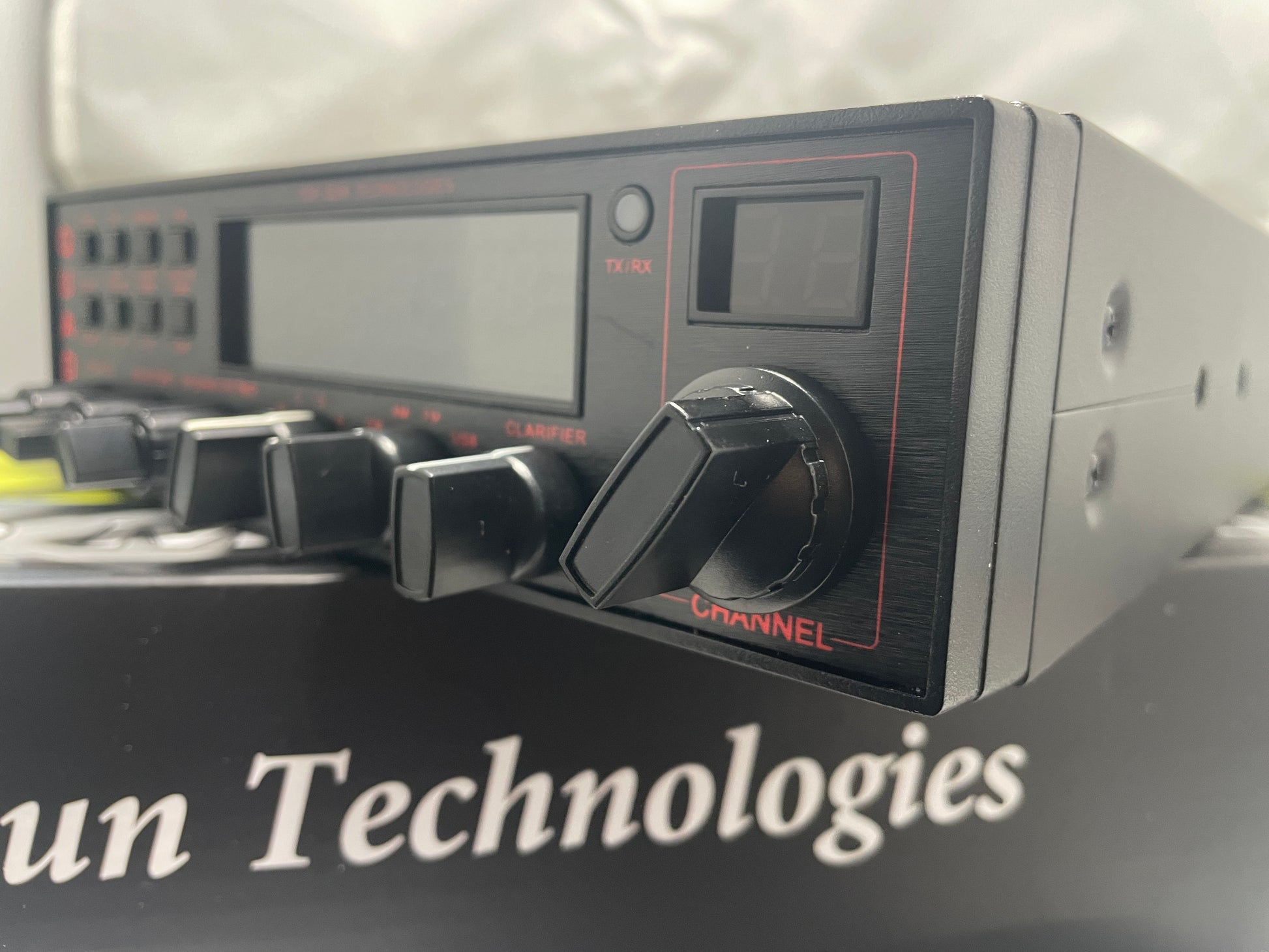

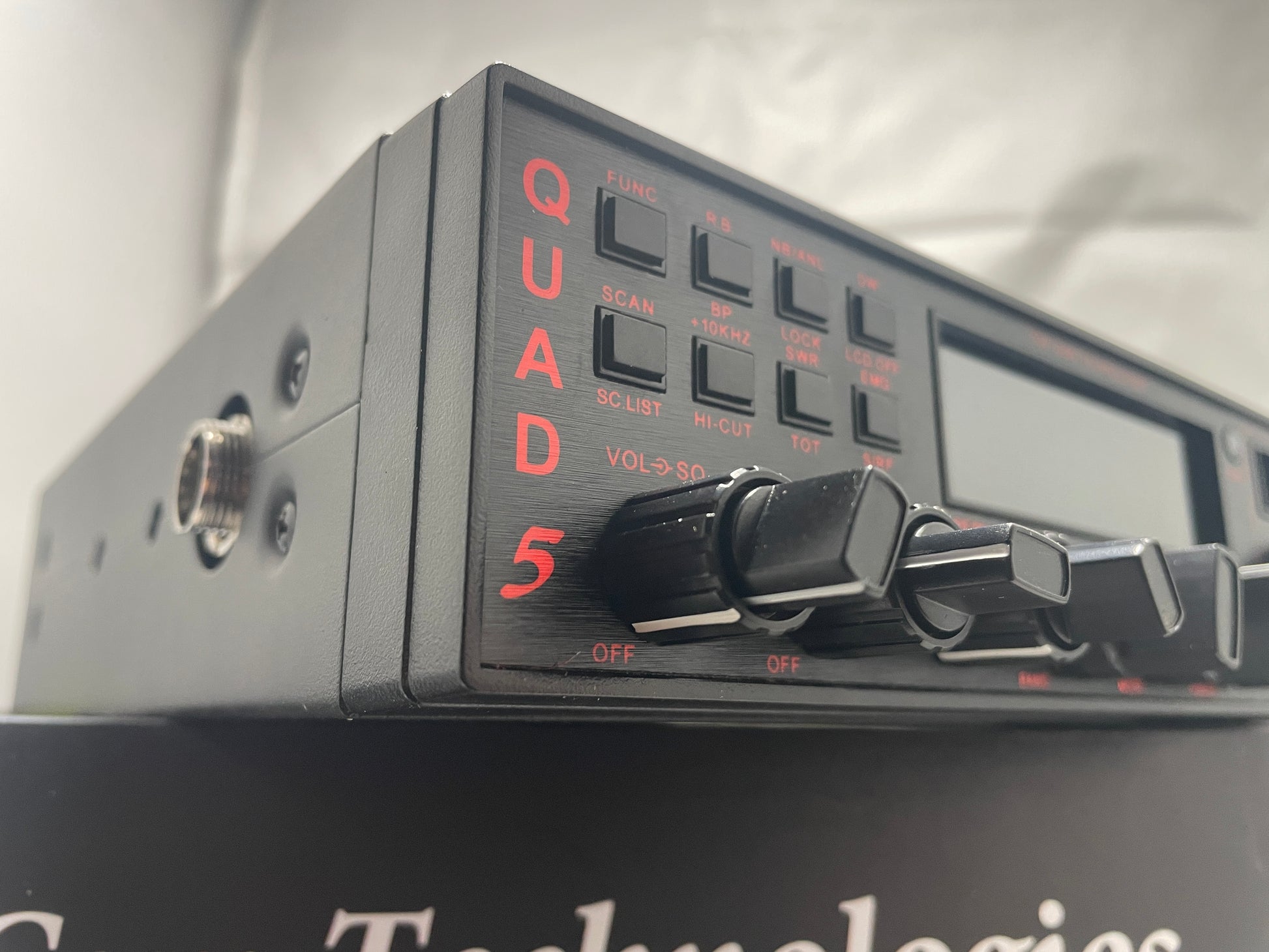

The Top Gun QUAD-5 ALL MODE 10-Meter Radio: Jammed With Features and Superb Audio Quality

The QUAD-5 radio is loaded with memory. Every channel retains the last clarifier frequency and more... It's top of it's class...the audio on both transmit and receive is excellent. Convenient standard 4-pin mic wiring. (Quality UP/DN/Auto Squelch switching mic included.) Program your favorite channel in the EMG channel on each of 6 bands for one button tuning. Your favorite mic is easily updated for UP/DN/ASQ.

• Computer Programmable! (Programming Cable NOT Included - SEE: PID1301)
• Front Panel Programmable!
• Repeater Offset Per Channel Programming
• Volt Meter
• Voltage Protection
• High SWR Protection
• Mic Gain, Adjustable Echo and Talkback
• Dual Watch
• Automatic Squelch
• SWR Meter and More!

Visit The Quad-5 Resource Center located at TopGunTec.Com for the 'latest' including programming instructions and software.

Top Gun Technologies - Providing the Best Products for the CB and Amateur Radio Enthusiast.

Features and Specifications:

• All Mode 10-Meter Mobile Amateur Radio
• AM/FM/USB/LSB/CW/PA
• High Power Dual Finals / 60-70 Watts PEP!
• Optional Complete Setup/Precision Alignment includes Audio Enhancements!
• Illuminated Faceplate
• Computer Programmable - Programming Cable NOT Included
• Adjustable Talkback And Mic Gain
• Dual Watch & Scan Feature
• Dual Control Adjustable Echo
• Adjustable RF Gain And RF Power
• No Cal Auto SWR Meter
• DC Voltage Meter Display
• SWR And Voltage Protection
• Hi Cut Tone Control
• ANL & NB Filters
• AM/FM Auto Squelch
• Programmable Clarifier
• UP/DOWN & Auto Squelch Buttons On Mic
• Programmable Emergency Channel 1 each For All 6 Bands
• Specifications:
  • General:
    • Model: QUAD-5
    • Frequency Range: 28.000MHz-29.700MHz MHz
    • Frequency Range: 28.000MHz-29.700MHz (Programmable)
    • Frequency Band: A/B/C/D/E/F
    • Channels: 60 Channels (Programmable) in Each Band
    • Frequency Control: Phase-Locked-Loop (PLL) Synthesizer
    • Frequency Step: 10Hz 100Hz 1KHz 10KHz
    • Frequency Tolerance: 0.005%
    • Frequency Stability: 0.001%
    • Temperature Range: -30C to +50C
    • Microphone: Plug-in Dynamic; 4-Pin; with Push-To-Talk/Up/Down/ASQ switch and Coiled Cord
    • Input Voltage: DC 13.8V Normal, 15.9V Max, 11.7V Min; Transmit: AM Full Mod 5A; Receiver: Squelched 0.6A, SSB 30W PEP Output 9A
    • Size: 11" x 9 13/16" x 2 13/32" inches (28x25x6CM)
    • Weight: 6.2 pounds (2.8KG)

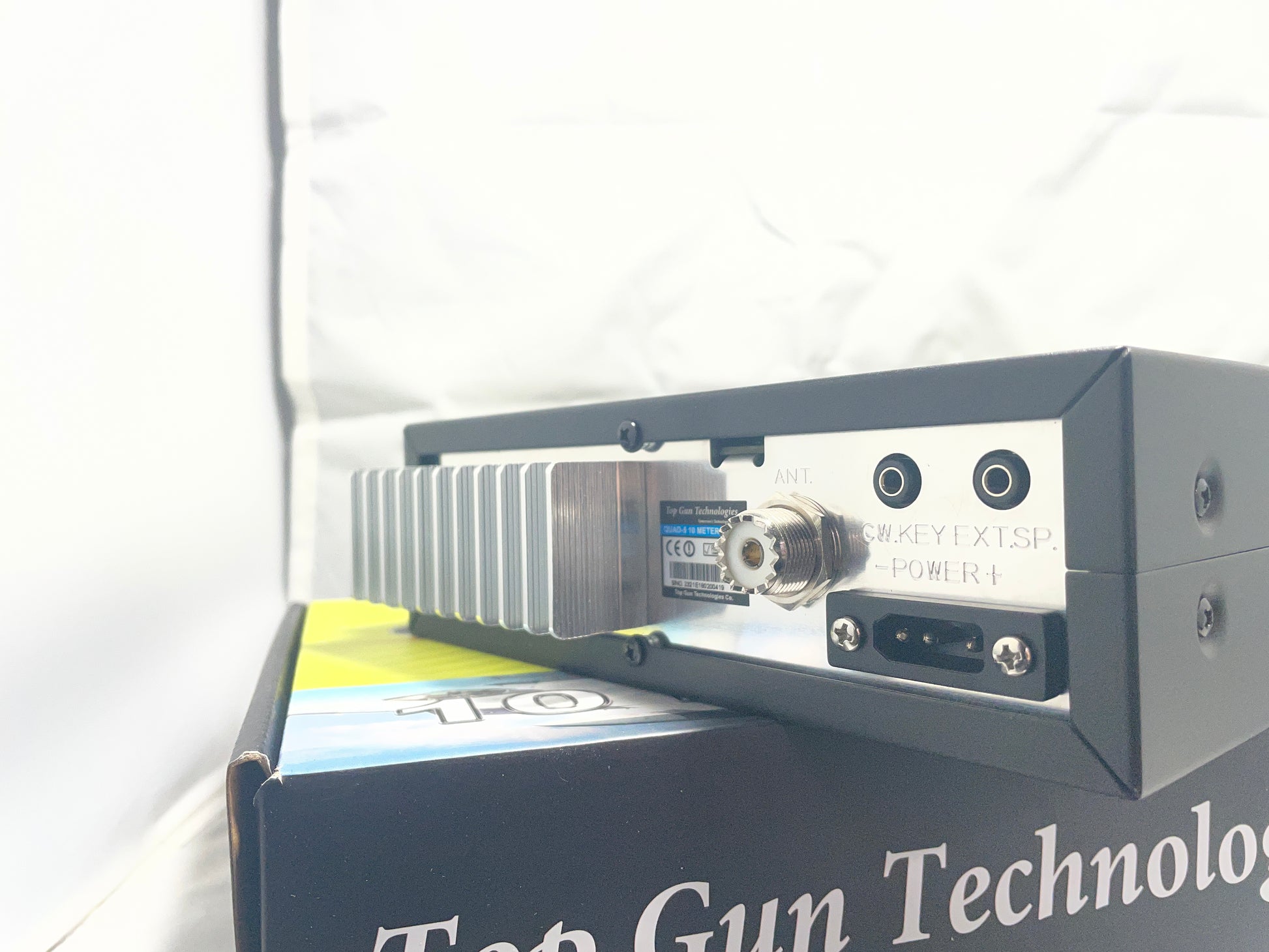

    • Antenna Connector: UHF, SO239
  • Transmitter:
    • RF Power Output: AM/CW:1-12W (Adjustable); AM PEP 60+W; FM:35+W (Adjustable); USB/LSB:15-60+W (Adjustable)
    • Modulation: High and Low Level Class B; Amplitude Modulation: AM; Varied Capacitance Frequency Modulation: FM
    • Inter-Modulation Distortion: SSB: 3rd Order, More than -25dB; 5th Order, More than -35dB
    • SSB Carrier Suppression: 55 dB
    • Unwanted Sideband: 50dB
    • Frequency Response: AM and FM: 450 to 2500Hz
    • Impedance: 50 Ohms, Unbalanced
  • Receiver:
    • Sensitivity: SSB: 0.25uV for 10dB (S+N)N at Greater than 1/2 Watt of Audio Output
    • Sensitivity: AM: 1.0uV for 10 dB (S+N)N at Greater than 1/2 Watt of Audio Output
    • Sensitivity: FM: 1.0uV for 20dB (S+N)N at Greater than 1/2 Watt of Audio Output
    • Selectivity: AM/FM: 6dB@3KHz, 50dB @9KHz
    • Selectivity: SSB: 6 dB@2.1KHz, 60dB @3.3KHz
    • Image Rejection: More than 65 dB
    • IF Frequency: AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF; SSB: 10.695 MHz
    • Adjacent-Channel Rejection: 60dB AM/FM; 70 dB SSB
    • RF Gain Control: 45 dB Adjustable for Optimum Signal Reception
    • Automatic Gain Control (AGC): Less than 10 dB Change in Audio Output for Inputs From 10 to 100,000 Microvolt
    • Squelch: Adjustable; Threshold Less Than 0.5uV; Automatic Squelch Control (Only AM/FM) 0.5uV
    • ANL: Switchable
    • Noise Blanker: RF Type, Effective on AM/FM and SSB
    • Audio Output Power: 4 Watts Into 8 Ohms
    • Frequency Response: 30 to 2800 Hz
    • Built-In Speaker: 8 Ohms, Round
    • External Speaker Jack: 8 Ohms; Disables Internal Speaker When Connected
• Contents:
  • 10 Meter QUAD-5
  • 4 Pin Microphone
  • DC Power Cord
  • Mounting Bracket with Hardware
  • User's Manual
  • Quick Reference Card
• Color: Black
• Stock Radio: Warranty is provided by the manufacturer if any. No warranty is provided by Central NC Radio Sales  or 460 COMM.
• Sold: Each
